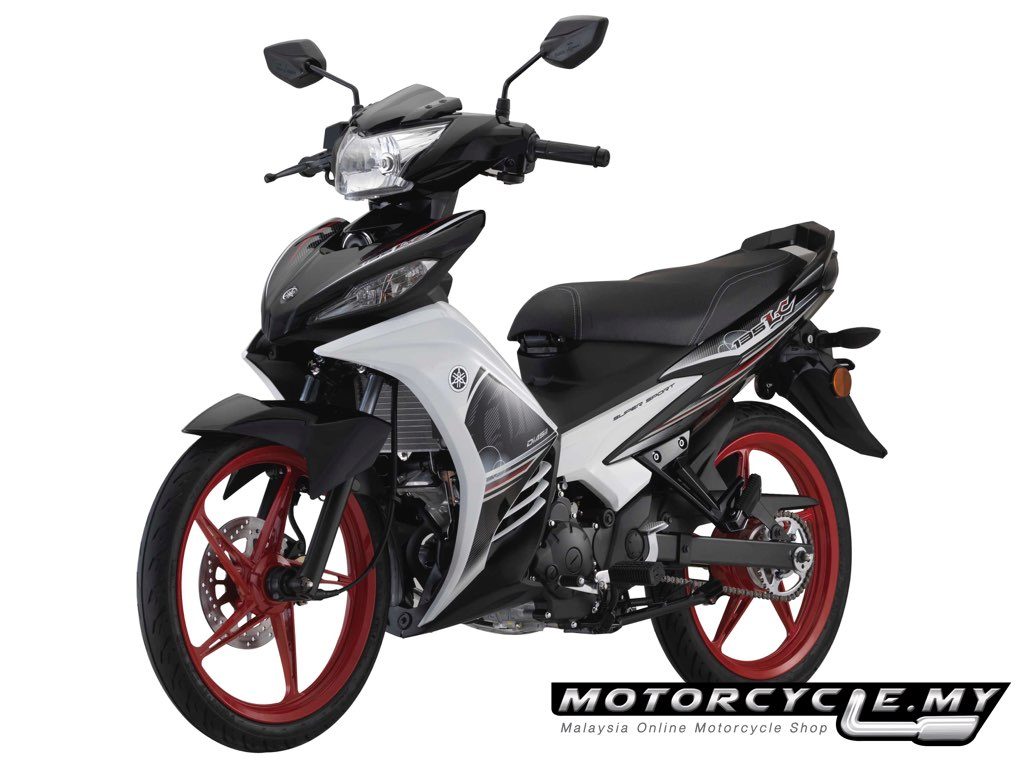

YAMAHA LC135
YAMAHA LC135 Malaysia Since 2006
YAMAHA LC135 ENGINE SPECIFICATION
Cylinders
Single Cylinder
Displacement
134 cm3
Bore x Stroke
54.0 X 58.7 mm
Compression Ratio
10.9 : 1
Maximum Horsepower
8.93kW (8,500rpm)
Maximum Torque
11.79N.m (5,500rpm)
Starting System
Electric and Kick
Lubrication System
Wet Sump
Engine Oil Capacity
0.9 litres
Fuel Tank Capacity
4.0 litres
Carburetor
BS25 x 1
Ignition System
DC – CDI
Headlight
12v, 35W/35W
Type
Rotary Type 4-Speed
Primary Reduction Ratio
2.875
Secondary Reduction Ratio
2.600
Gear Ratios
1st: 2.833; 2nd: 1.875; 3rd: 1.353; 4th: 1.045
Clutch Type
Automatic Centrifugal / Constant Mesh, Wet Multi – Plate
| Frame Type DiamondOverall Length 1,960 mmOverall Width 695 mmFrame Type DiamondSeat Height 775 mmMin. Ground Clearance 130 mmDry Weight 105 kg Front Rear
|
| Wheelbase | 1,245 mm |
|---|---|
| Dimensions | L: 1,945 mm W: 705 mm H: 1,065 mm |
| Seat height | 770 mm |
| Weight | 109 kg |
| Fuel capacity | 4.0 L |
| YAMAHA LC135 ENGINE Oil Capacity | 1.1 L |
Others country called.
Yamaha Spark 135/135i (Thailand)
Yamaha Exciter 135 (Vietnam)
Yamaha Sniper/MX 135 (Philippines)
Yamaha Jupiter MX 135 LC (Indonesia)
Yamaha Crypton X 135 (Greece)
