Honda CRF 250 Rally Malaysia

The Honda CRF 250 Rally was the derivative of the popular Honda CRF 250L trail bike that’s been with us since 2012. It features the same single cylinder liquid-cooled 250cc engine, steel twin tube frame and spoked 21-inch front, 18-inch rear wheels. The Rally gets slightly taller suspension, rally-inspired fairing, LED headlights, and daytime running light indicators as on the Africa Twin, a slightly larger fuel tank (up from 7.8-litres to 10.1-litres). Seat height is also up from 875mm to 895mm and weight from 146kg to 157kg, with an increase in front brake disc size from 256mm to 296mm. With styling that’s directly linked to the HRC CRF450 RALLY Dakar racer, the Honda CRF 250 Rally has the look of a competitive desert racer that could take on the world. This bike delivers a real taste of adventure to riders who prefer a light, easy-to-manage machine. Around the world or around the block, it’s good to go anywhere you want to take it – trail or tarmac.
Honda CRF 250 Rally Malaysia Gallery
HRC Colours
The CRF250 Rally comes finished in Honda’s Extreme Red competition colour – just like the desert racing 450 – as a base, with black and white accents inspired by the HRC factory machines.

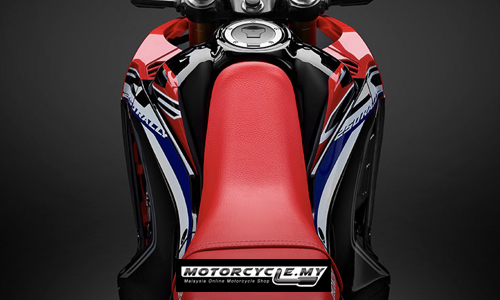

Slim Side Panels
From the bike’s mid-section to the back, the style is sharp and aggressive – pure MX – with super-slim side panels and a seat and tank combination that helps the rider move freely on the machine.

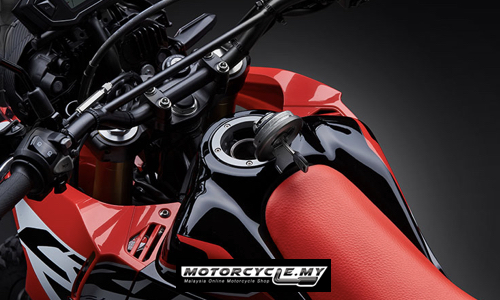

Long Range Fuel Tank
The 10.1 litre fuel tank, with a 1.6L reserve, delivers a range of over 320km; perfect for a long weekend tour and good measure for a bit of off-road too. The flat filler cap is hinged for easy-fill convenience.

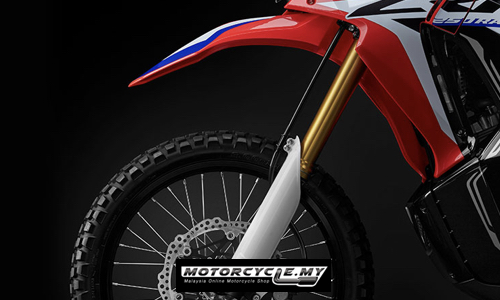

Front Suspension
A 43mm Showa inverted fork, with 250mm stroke, is 50mm longer than the CRF250L. Working as one unit – one side contains the spring while the other provides damping control – the spring rate and damping have been tuned to suit the bike’s long-distance capability.

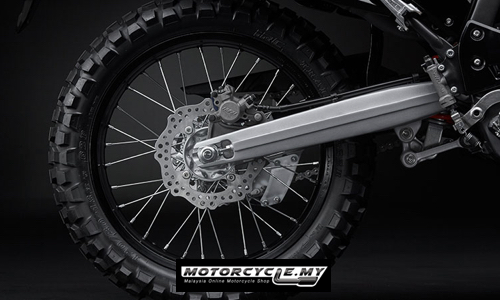

Rear Suspension
Pro-Link rear suspension features a ratio revised for rider comfort. The Showa shock absorber is a single tube design with 40mm diameter cylinder.

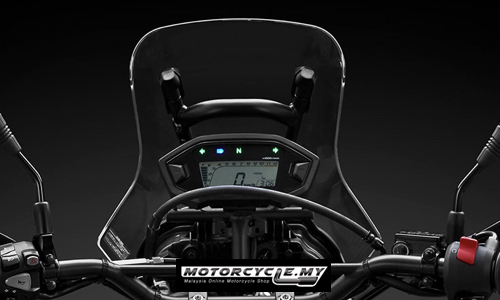

Floating Windscreen
Developed from the parts used by the CRF450 RALLY, the ‘floating’ screen – along with the upper and lower fairing and side shrouds – effectively shield the rider and offer excellent protection from the elements.

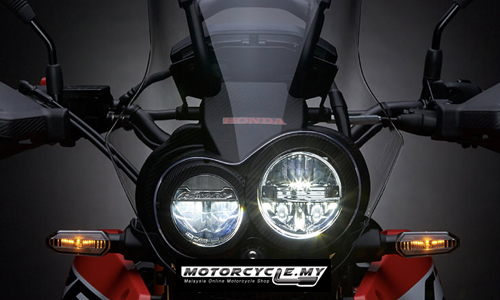

Asymmetric LED headlights
The look of a true desert fighter, the LED asymmetric headlights provide excellent visibility on and off road. Others won’t miss you’re your turn either, as the indicators are also LED.

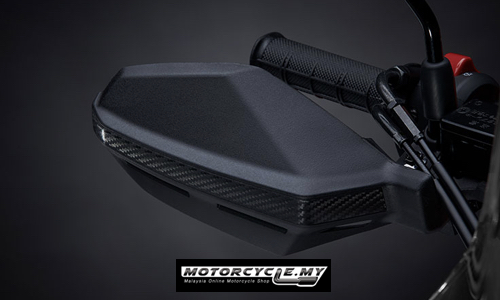

Hand Guards
Hand guards offer further protection from the weather, but also protect your hands, brake and clutch levers from any obstacles that you may encounter when venturing off road.
Honda CRF 250L Malaysia Vs Honda CRF 250 Rally Malaysia
Honda CRF 250L Malaysia
Engine Specification
| Type | Liquid-cooled, Single, DOHC |
|---|---|
| Engine Displacement (cm3) | 250cc |
| No. of Valves per Cylinder | 4 |
| Bore × Stroke (mm) | 76.0 x 55.0 |
| Compression Ratio | 10.7:1 |
| Max. Power Output | 18.2kW/8500rpm |
| Max. Torque | 22.6Nm/6750rpm |
| Oil Capacity (Litres) | 1.8L |
Honda CRF 250L Malaysia
Fuel System Specification
| Carburation | PGM-FI |
|---|---|
| Fuel Tank Capacity | 7.8L |
| Fuel Consumption | 33.3km/litre |
Honda CRF 250L Malaysia
Electrical System Specification
| Starter | Electric |
|---|---|
| Battery Capacity | 12V-7AH |
| ACG Output | 324W / 5000rpm |
Honda CRF 250L Malaysia
Drivetrain Specification
| Clutch Type | Wet multiplate hydraulic |
|---|---|
| Transmission Type | 6-speed |
| Final Drive | Chain |
Honda CRF 250L Malaysia
Frame Specification
| Type | WSteel Twin Tube |
|---|
Honda CRF 250L Malaysia
Chassis Specification
| Dimensions (L×W×H) | 2195 x 815 x 1195mm |
|---|---|
| Wheelbase | 1455mm |
| Caster Angle | 27.6° |
| Trail | 113mm |
| Seat Height | 875mm |
| Ground Clearance | 255mm |
| Kerb Weight | 146kg |
| Turning radius | 2.3m |
Honda CRF 250L Malaysia
Suspension Specification
| Type Front | 43mm Telescopic Upsidedown |
|---|---|
| Type Rear | Prolink |
Honda CRF 250L Malaysia
Wheels Specification
| Rim Size Front | 21 inch |
|---|---|
| Rim Size Rear | 18 inch |
| Tyres Front | 3.00-21 51P |
| Tyres Rear | 120/80-18M/C 62P |
Honda CRF 250L Malaysia
Brakes Specification
| ABS System Type | 2 channel |
|---|
Honda CRF 250L Malaysia
Instruments and Electrics Specification
| Instruments | Digital |
|---|---|
| Headlights | Bulb |
| Taillight | Bulb |
Honda CRF 250 Rally Malaysia
Engine Specification
| Type | Liquid-cooled, Single, DOHC |
|---|---|
| Engine Displacement (cm3) | 250cc |
| No. of Valves per Cylinder | 4 |
| Bore × Stroke (mm) | 76.0 x 55.0 |
| Compression Ratio | 10.7:1 |
| Max. Power Output | 18.2kW/8500rpm |
| Max. Torque | 22.6Nm/6750rpm |
| Oil Capacity (Litres) | 1.8L |
Honda CRF 250 Rally Malaysia
Fuel System Specification
| Carburation | PGM-FI |
|---|---|
| Fuel Tank Capacity | 10.1L |
| Fuel Consumption | 33.3km/litre |
Honda CRF 250 Rally Malaysia
Electrical System Specification
| Starter | Electric |
|---|---|
| Battery Capacity | 12V-7AH |
| ACG Output | 324W / 5000rpm |
Honda CRF 250 Rally Malaysia
Drivetrain Specification
| Clutch Type | Wet multiplate hydraulic |
|---|---|
| Transmission Type | 6-speed |
| Final Drive | Chain |
Honda CRF 250L Malaysia
Frame Specification
| Type | WSteel Twin Tube |
|---|
Honda CRF 250 Rally Malaysia
Chassis Specification
| Dimensions (L×W×H) | 2210 x 900 x 1425mm |
|---|---|
| Wheelbase | 1455mm |
| Caster Angle | 28.1° |
| Trail | 114mm |
| Seat Height | 895mm |
| Ground Clearance | 270mm |
| Kerb Weight | 157kg |
| Turning radius | 2.3m |
Honda CRF 250 Rally Malaysia
Suspension Specification
| Type Front | 43mm Telescopic Upsidedown |
|---|---|
| Type Rear | Prolink |
Honda CRF 250 Rally Malaysia
Wheels Specification
| Rim Size Front | 21 inch |
|---|---|
| Rim Size Rear | 18 inch |
| Tyres Front | 3.00-21 51P |
| Tyres Rear | 120/80-18M/C 62P |
Honda CRF 250L Malaysia
Brakes Specification
| ABS System Type | 2 channel |
|---|
Honda CRF 250 Rally Malaysia
Instruments and Electrics Specification
| Instruments | Digital |
|---|---|
| Headlights | LED |
| Taillight | Bulb |
