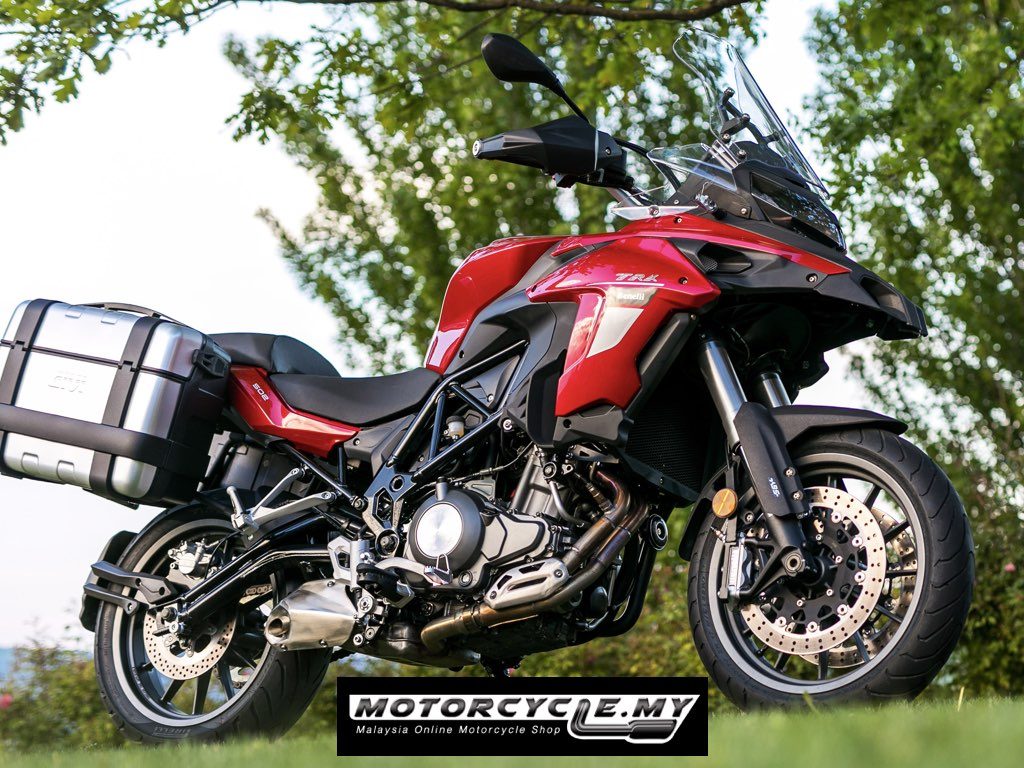

Benelli TRK 502 Malaysia

A TOURIST SOUL – Jump aboard Benelli’s adventure-oriented TRK 502, and the road is your ticket to freedom. Whether you’re riding across town or across the country, the TRK is the perfect traveling companion. With its comfortable ergonomics, amazing wind and weather protection, capable suspension, and efficient and powerful twin-cylinder engine, you can turn each day into a different adventure, discover new worlds, all without any limitations.

Wrapped in a traditional Benelli steel trellis frame is the all new twin-cylinder four- stroke liquid-cooled 500cc, developed by Benelli for its latest new models, with electronic injection, overhead double camshaft timing system, 4 valves per cylinder. The maximum power is 48 CV (35 kW) at 8500 rpm and the torque is of 45 Nm (4,6 kgm) at 4500 rpm, meaning perfect response in all conditions.

The suspension offer maximum comfort for rider and passenger, thanks to an adjustable upside down front fork, and at the rear, a swingarm with monoshock.

Displaying this is the braking performance, thanks to the two front discs, 320 mm in diameter, and two-piston floating caliper. The rear disc is 260 mm in diameter, and is also gripped by a twin piston caliper.
Stability, safety and precision are the key words of this new Benelli TRK 502.

So get on a TRK 502. And get away.

STYLE & ERGONOMICS

The TRK 502 blends modern shapes with classic, adventure-bike styling to create a rugged, do-anything look. The riding position is amazingly comfortable, with a wide handlebar, a plush saddle and plenty of legroom for comfort on longer trips.

SUSPENSION

High quality suspension includes a 50mm inverted fork up front (with 135mm of stroke) and a swingarm-monoshock system in back. The combination offers superb wheel control and a comfortable ride, on road or off.

FRAME

A steel-tube trellis frame surrounds the TRK 502’s engine, and provides a superb balance of rigidity and light weight. The TRK is maneuverable and confidence-inspiring on road or off, especially with its wide handlebar.

ENGINE

The TRK 502 is powered by an all-new and highly advanced 499cc twin-cylinder engine, 4-valve technology and double overhead camshfafts for maximum power, fuel injection for precise throttle response, and a six-speed gearbox.

Colors of Benelli TRK 502 Malaysia

Benelli TRK 502 is available in 4 different colors:

Benelli TRK 502 White

Benelli TRK 502 Red

Benelli TRK 502 Black

Benelli TRK 502 Malaysia Engine Specifications

TYPE	In line 2 cylinders, 4-stroke, liquid cooled , 4 valves for cylinder double overhead camshaft
DISPLACEMENT	4 499,6 c.c.
BORE X STROKE	69 x 66,8 mm
COMPRESSION RATIO	11,5:1
RATED OUTPUT	35 kW (47,6 Cv) @ 8500 rpm

STARTING	Elettrico
GEAR RATIO	N/A
PRIMARY DRIVE	N/A
FUEL CONSUMPTION	3,9 l/100 km
CO2 EMISSIONS	91 g/km

CLUTCH	Wet clutch
GEARBOX	6 speeds
FINAL DRIVE	Chain drive
IGNITION	Delphi MT05
SPARK PLUG	NGK CR8E

MAX. TORQUE	45 Nm (4,6 kgm) @ 5000 rpm
LUBRICATION	Wet sump
FUEL SUPPLY	Electronic fuel injection with throttle body ø 37 mm
EXHAUST SYSTEM	With catalytic converter and oxygen sensors
CERTIFICATION	Euro 4

Benelli TRK 502 Malaysia Chassis Specifications

FRAME	Trestle in steel tubes
FRONT SUSPENSION	Adjustable Upside-down forks Ø 50mm
FRONT SUSPENSION STROKE	135 mm
REAR SUSPENSION	Rear swing arm with central shock absorber spring preload adjustable
REAR SHOCK ABSORBER STROKE	45 mm
FRONT BRAKE	Twin semi floating disk ø320 mm with 4 pistons caliper and ABS
FRONT RIM TYPE	Aluminum alloy ( Optional Aluminium rim spoked )
FRONT RIM DIMENSIONS	17” x MT 3.50” DOT ( Optional 19”x3.0” )
REAR BRAKE	Single disc ø260 mm with single piston calliper and ABS
REAR RIM TYPE	Aluminum alloy (Optional Aluminium rim spoked)
REAR RIM DIMENSIONS	17” x MT 4.5” DOT (Optional17”x4.25” )
FRONT TYRE	120/70-ZR17 (Optional 110/80 – R19)
REAR TYRE	160/60 – ZR17 (Optional 150/70 – R17)
